What is this for?

A handy article that might be useful when looking at weight saving.



Engine Bay
Item Weight
kg
Note
Crankshaft

16


Intake resonator box 0.7 No pipe work
Air conditioning system 17.3 6.9 - Pump
2.6 - Chiller
3.1 - Radiator
1.6 - Pipe work
1.5 - Cooling fan
0.8 - Mounting brackets
0.6 - Liquid receiver
0.2 - Sensors etc
??? - Refrigerant
Catalytic converter 10.9 Aussie DP weighs 2.4
Exhaust 6.4 - Centre section Scorpion exhaust weight:

1 - Front
4.5 - Centre
5 - Rear
Starter motor 3.9
Passenger radiator fan 2.6
Alternator bracket 2.0

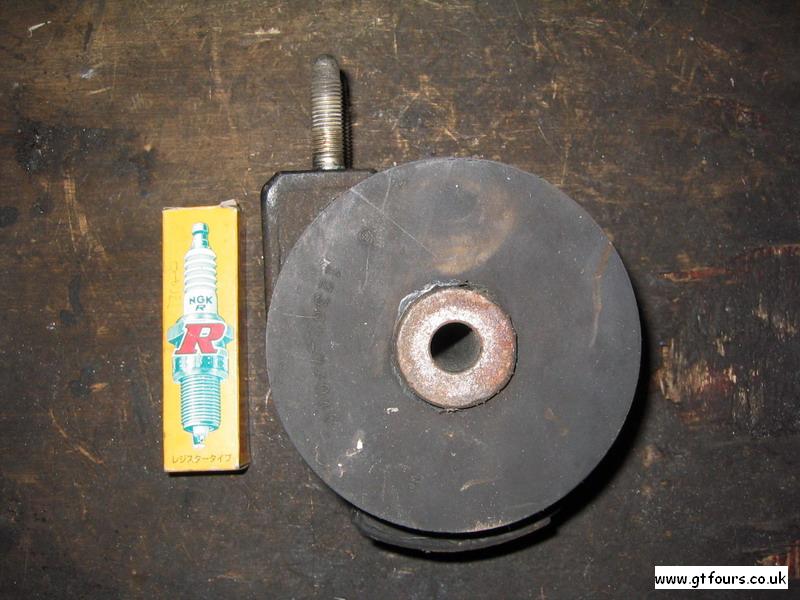

Drivers side engine mount 1.6

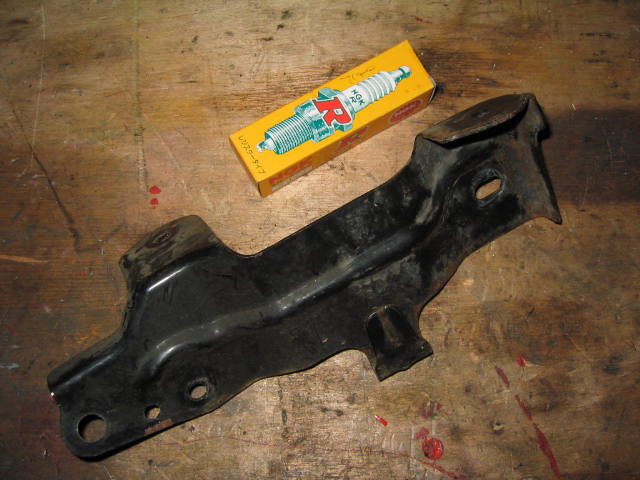

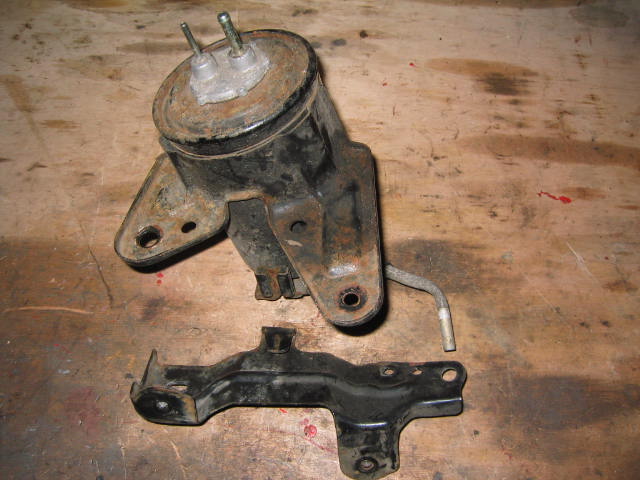

Carbon canister and mounting bracket 1.5 1.3 - Canister
0.2 - Mounting bracket

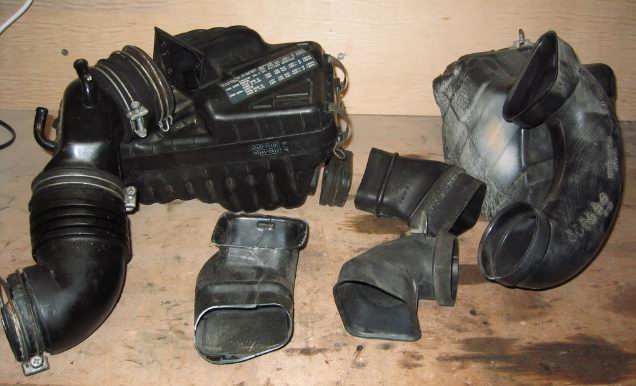

Air intake box 1.1 - with stock filter
0.79 - empty

Radiator overflow tank 1.4 With pipes
IC pump 1.3 With bracket

185 CS without bracket 2.0

Air intake box to turbo pipe work 1.0
EGR system 1.0 Pipework, VSVs and bolts
Intake manifold support struts 0.7

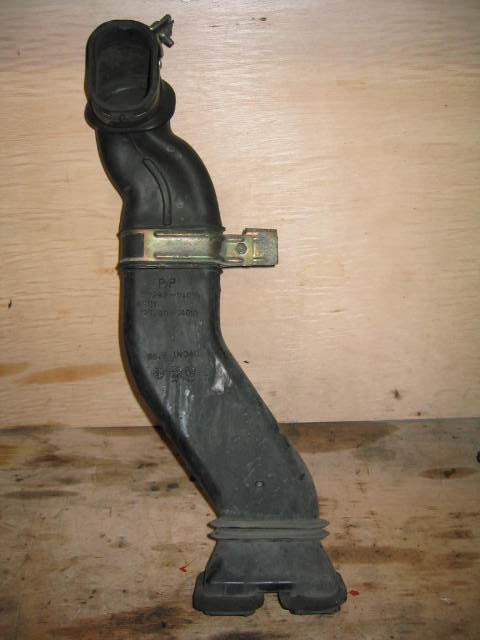

Alternator cooling duct 0.5

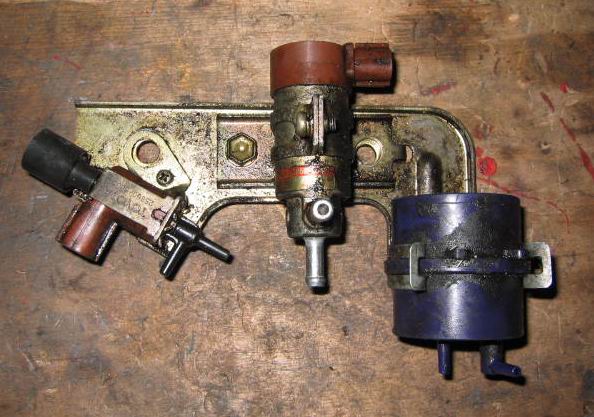

TVSV, TVIS VSV and mounting plate 0.5
IC hard pipes above gearbox 0.4
Battery clamp and plastic under tray 0.4

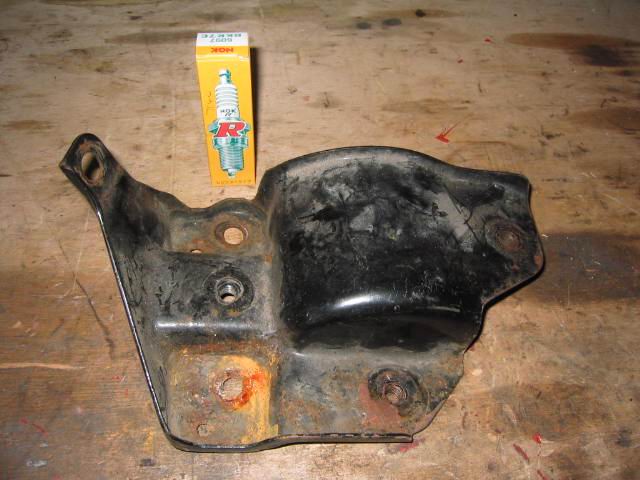

Gearbox mount cover 0.4
Pre air filter pipe work and fitting etc 0.4
Cambelt top cover 0.3
Rear wheel disk backing cover 0.3
TVIS components 0.2 Butterfly valves etc




Transmission
Item Weight
kg
Note
Gearbox 86.4
Rear diff 26.1
Propshaft 20
Steering rack 9.4 With pipe work
Rear drive shaft 7.4
Front hub 5.8 Without shielding




Brakes
Item Weight
kg
Note
Front calliper 5 Twin pot, without pads
Rear calliper 2.8 Single pot, without pads




Suspension
Item Weight
kg
Note
?
?





General
Item Weight
kg
Note
Radiator

5.4


Radiator fan

2.6

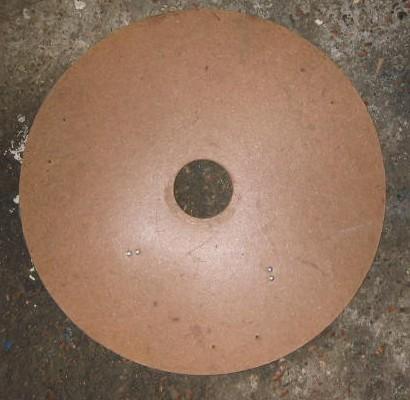

Spare tyre cover

0.7


Rear diff mount

0.95


Front wing body kit

0.21 - Upper strip
0.46 - lower section

Per side
Front indicator

0.36


Drivers seat 22
Passenger seat 10
Headlight 4.5 Complete headlight unit with motor
